Amiga 3000T PSU

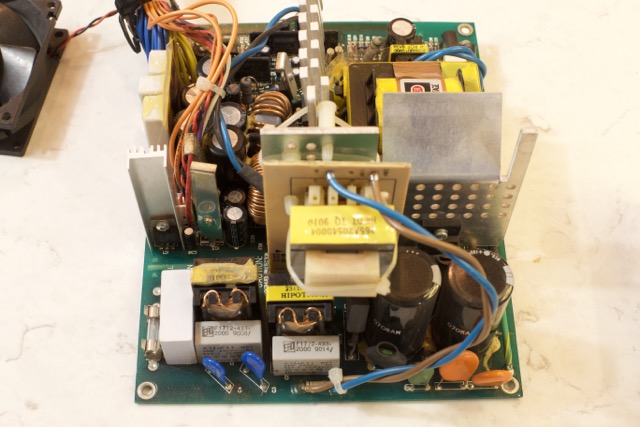

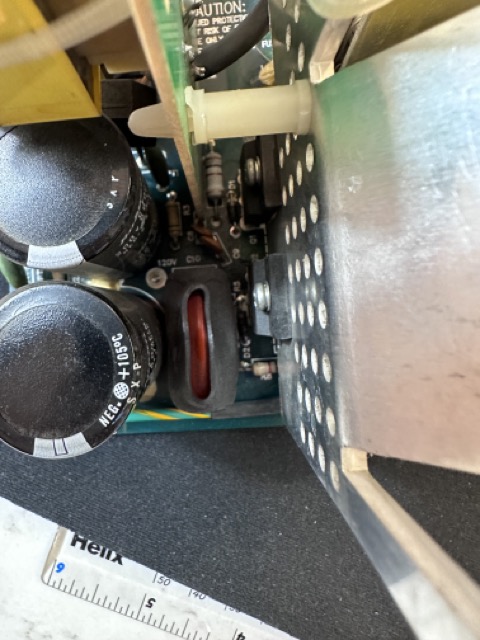

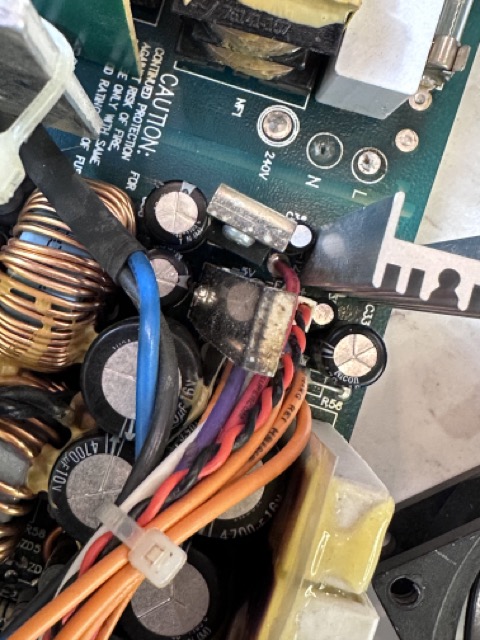

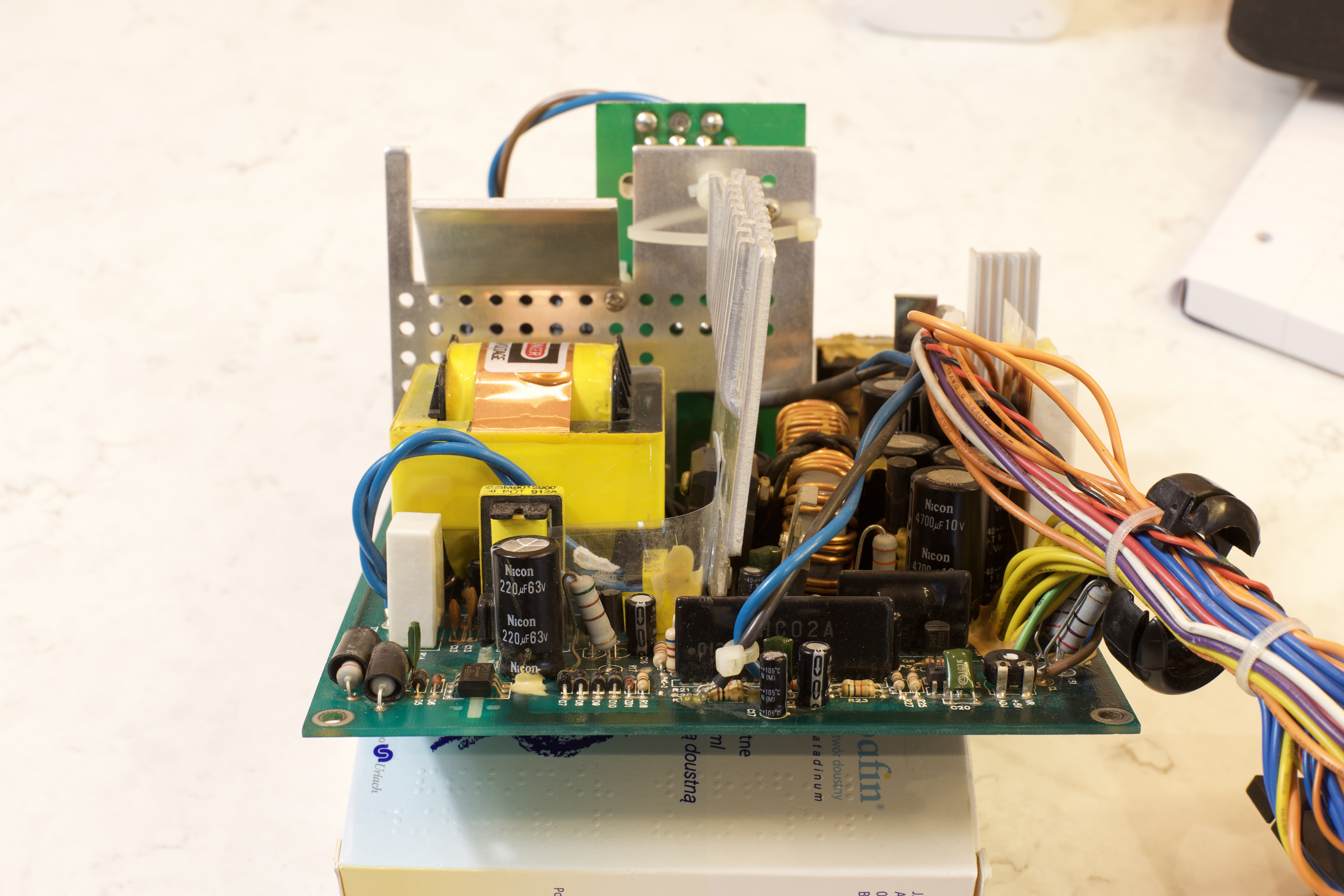

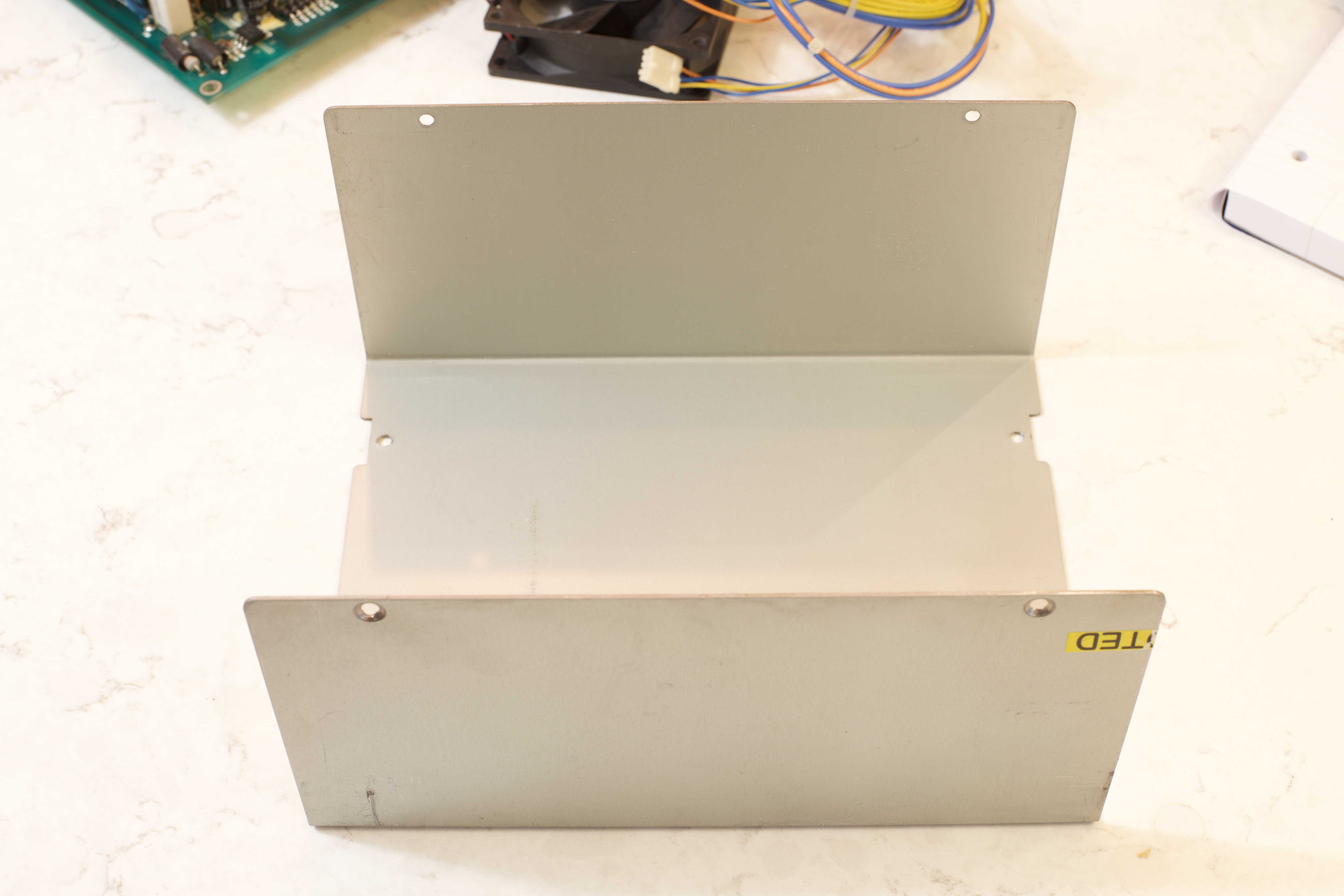

For all images in this article, click thumbnail to see the full-size image.

Model designation

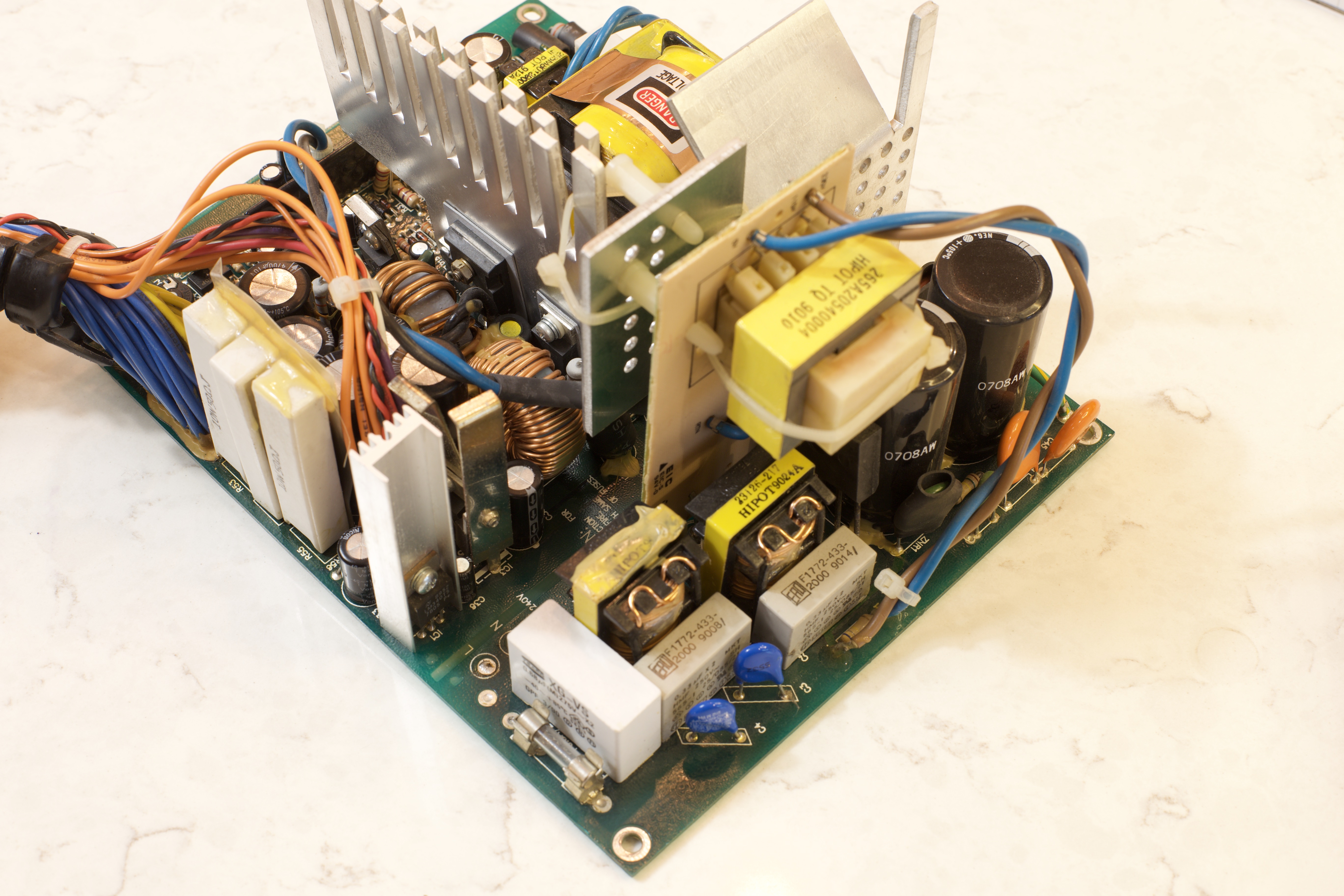

The specs and photos below are based on the PSU installed in 1992 Amiga 3000T serial no. 001050 made in W. Germany.

Specs as per label and PCB silkscren

Phihong Enterprise Co., Ltd. Switching Power Supply
Model: PSM-2560-2
Commodore part number: 390484-01

Made in Taiwan R.o.C.

This website advertises refurbished PSUs with this model designation, but we have not verified if they are still in stock.

AC input: 240V~3.5A 50Hz
DC output: max. power 280W

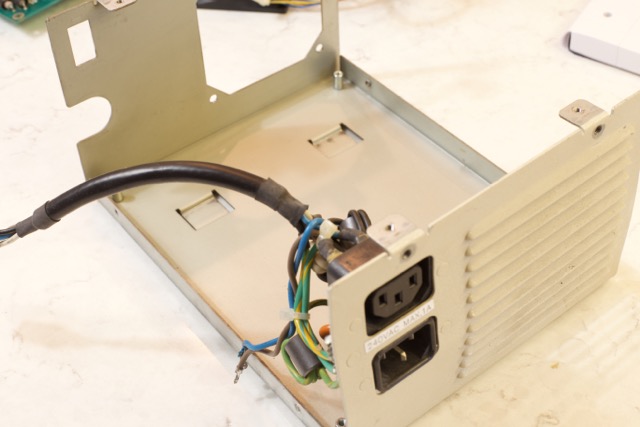

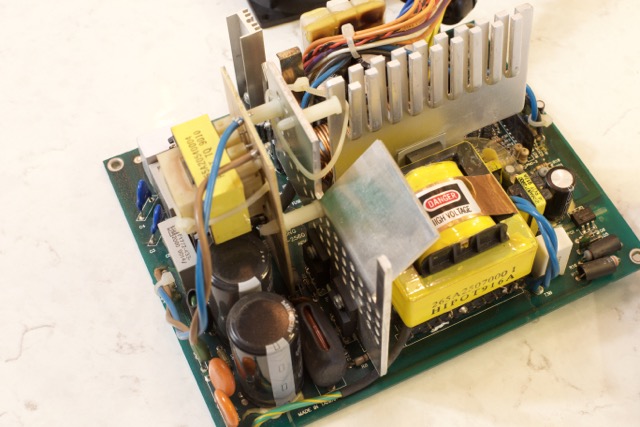

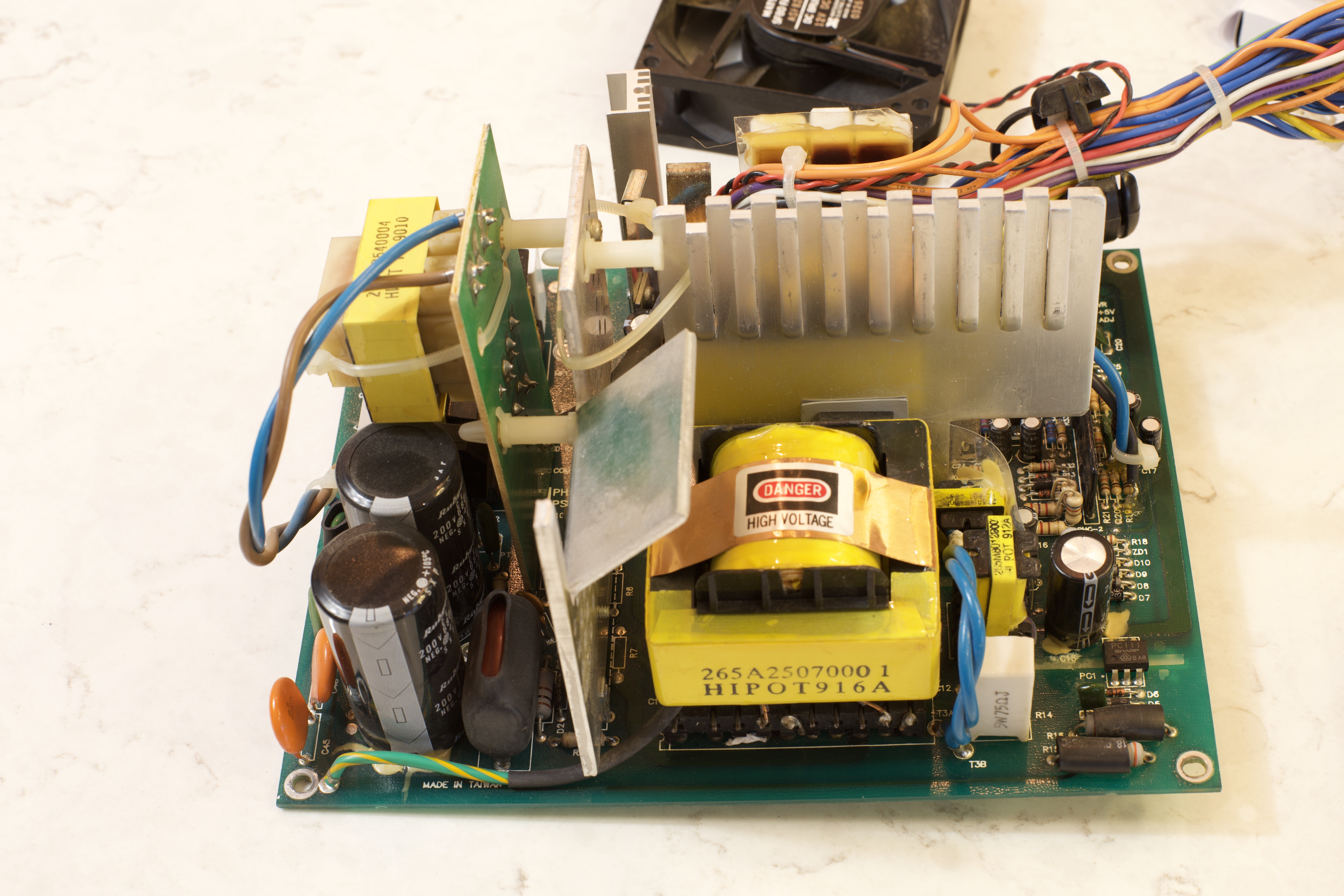

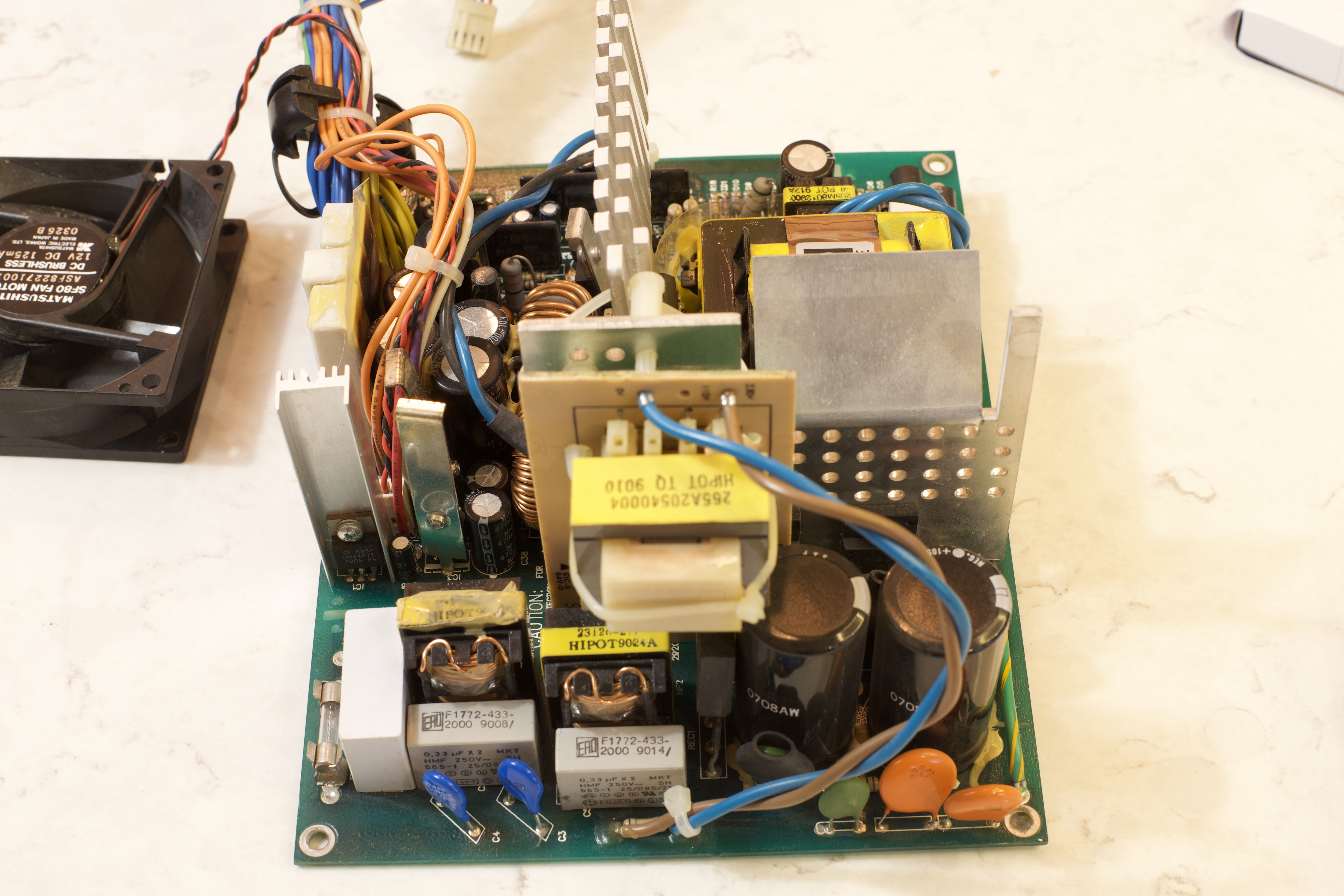

Disassembly, voltages, washing, close look

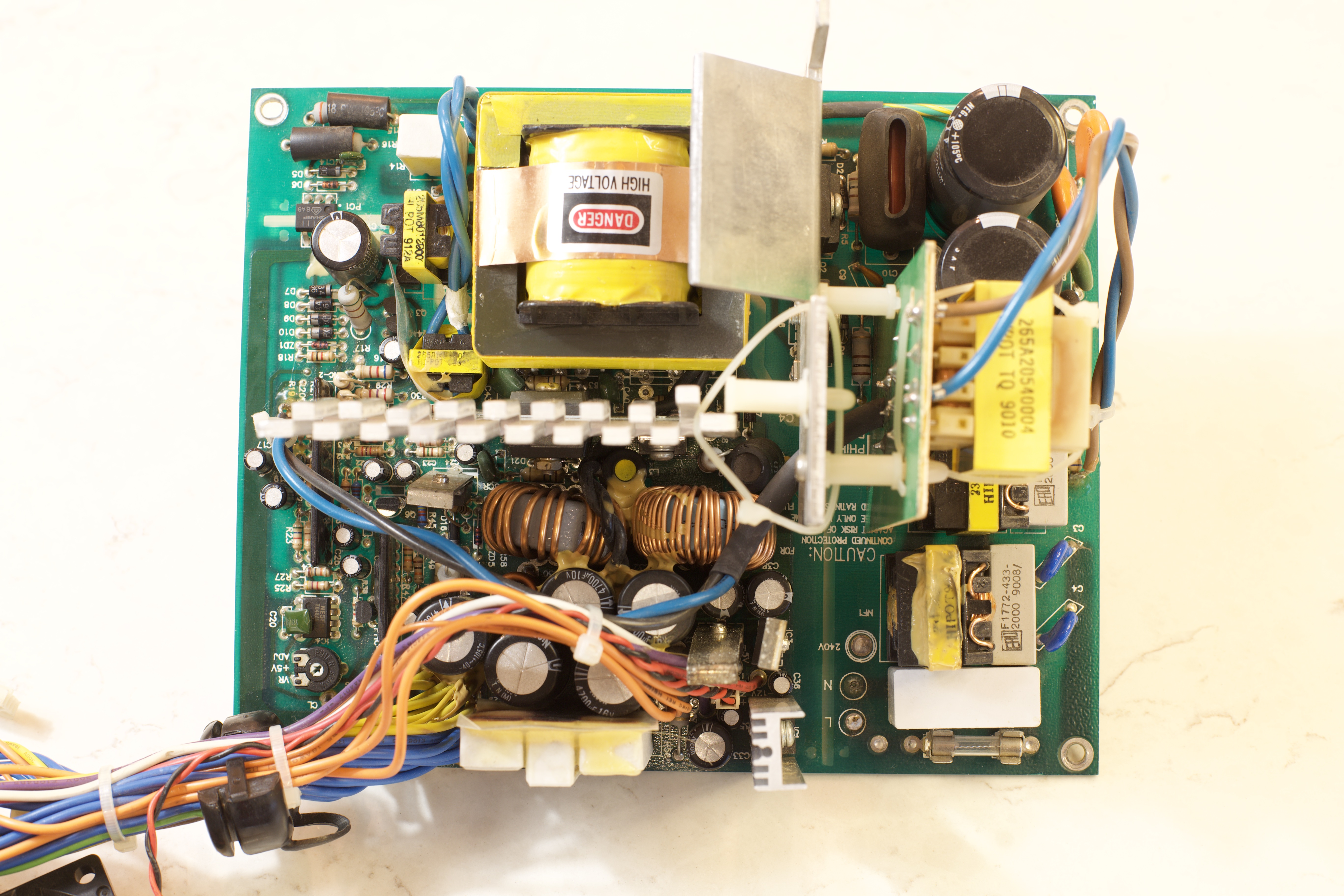

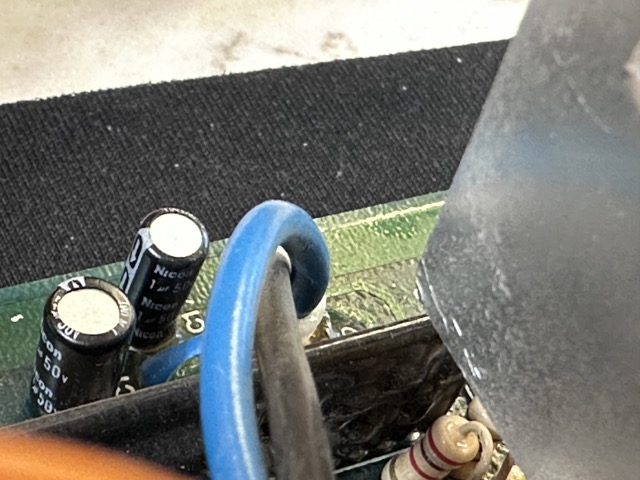

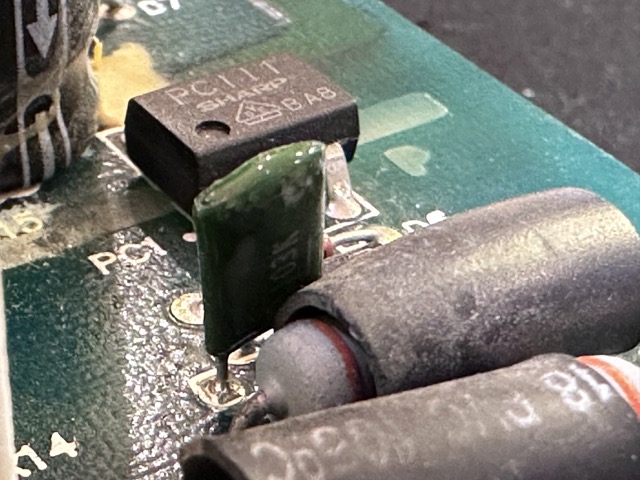

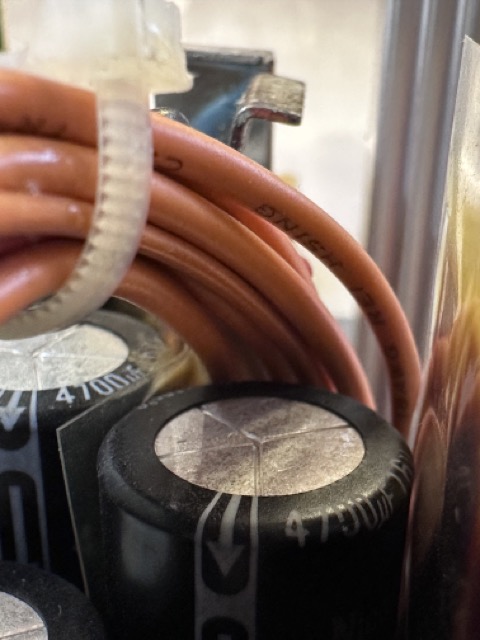

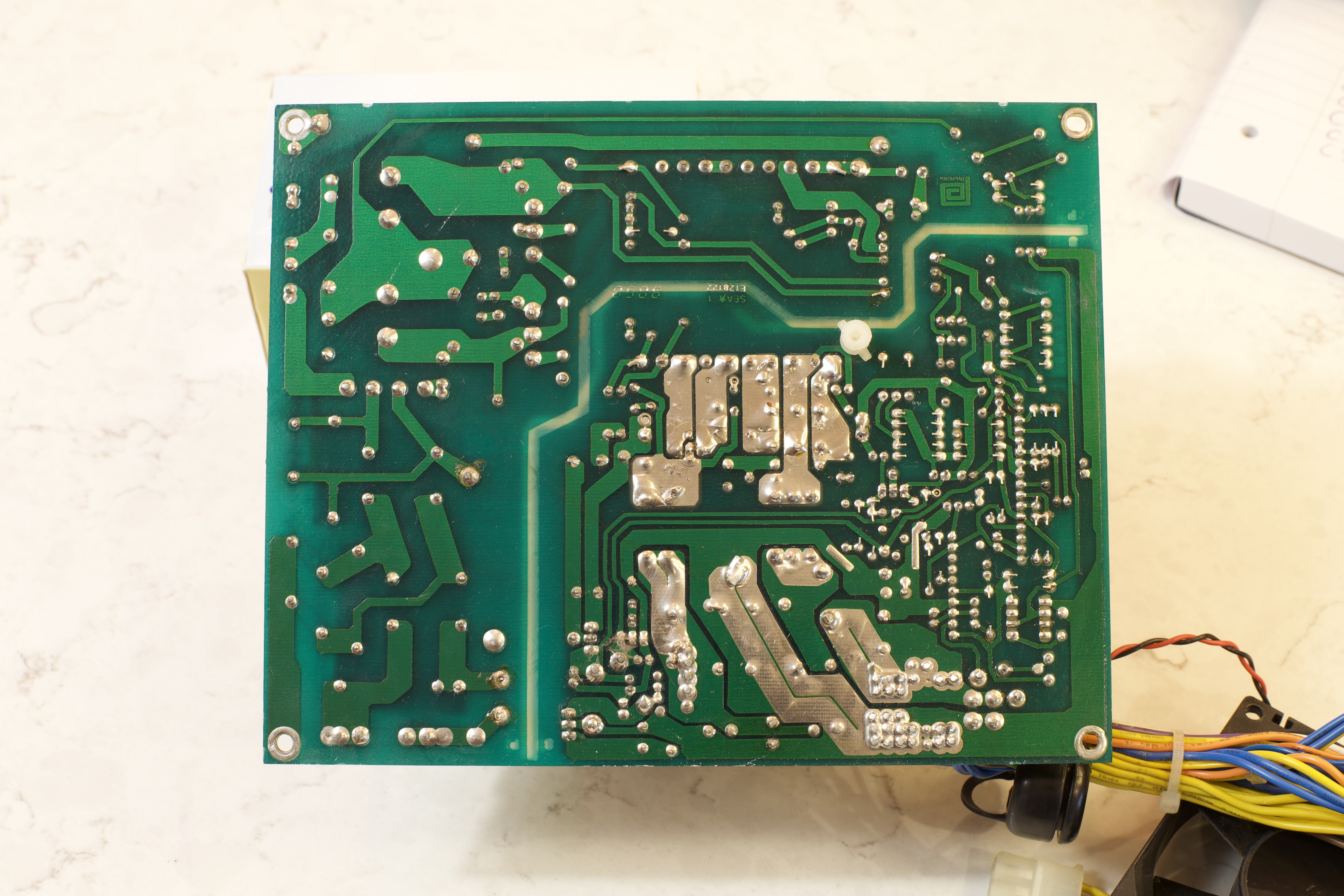

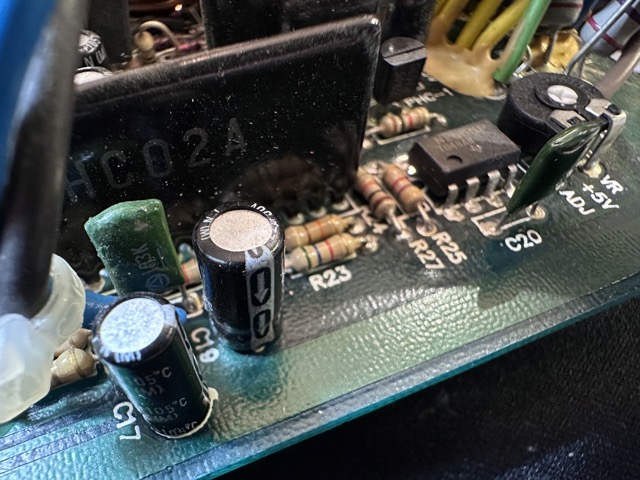

Gallery of images after washing

List of capacitors

C1	680 µF (M) 200V -40/+105C SXP Rubycon 50 x 25 mm
C2	680 µF (M) 200V -40/+105C SXP Rubycon 50 x 25 mm
C3	See image
C4	See image

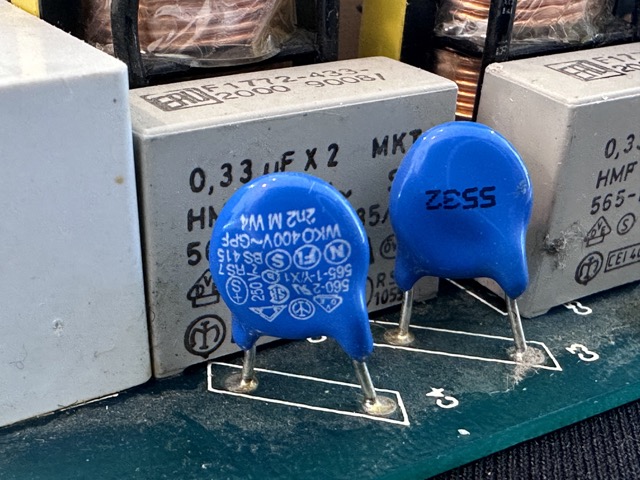

C5	0.33 µF X2 MKT HMF 250V SH
C6	0.33 µF X2 MKT HMF 250V SH

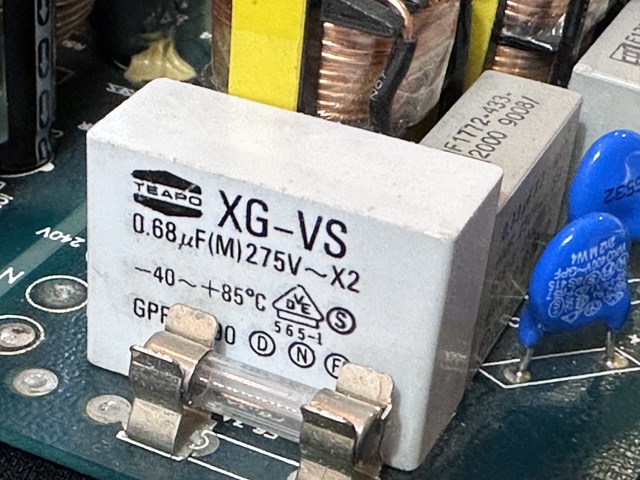

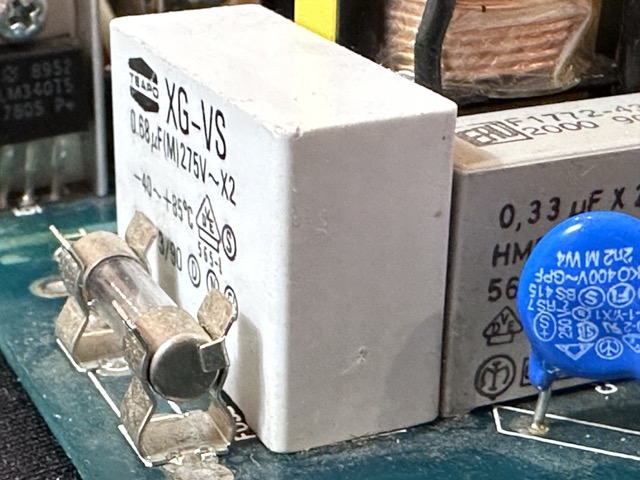

C7	0.68 µF (M) 275V~X2 -40-85C TEAPO 30x23x12

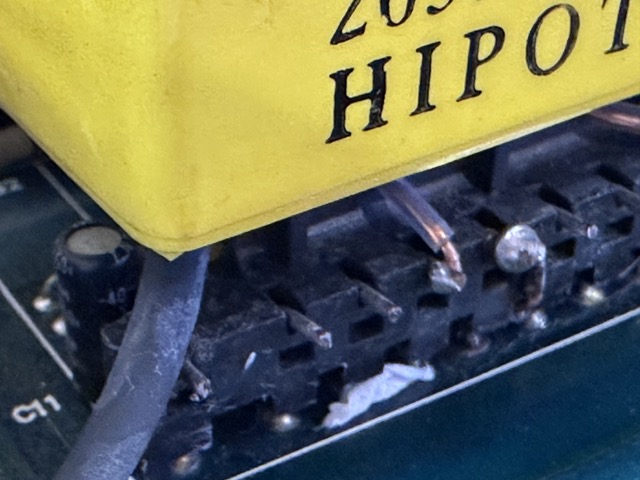

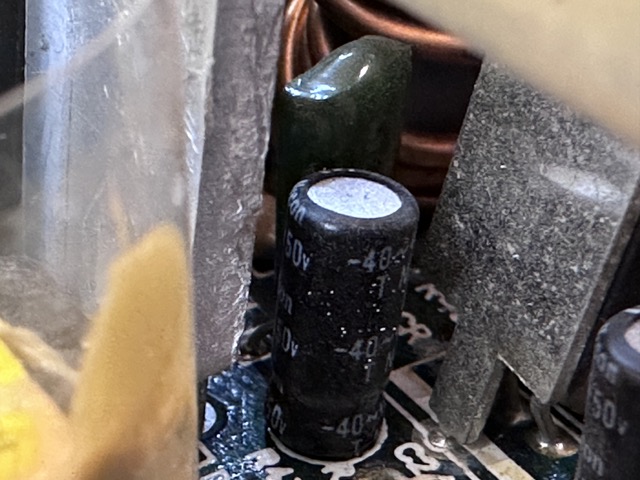

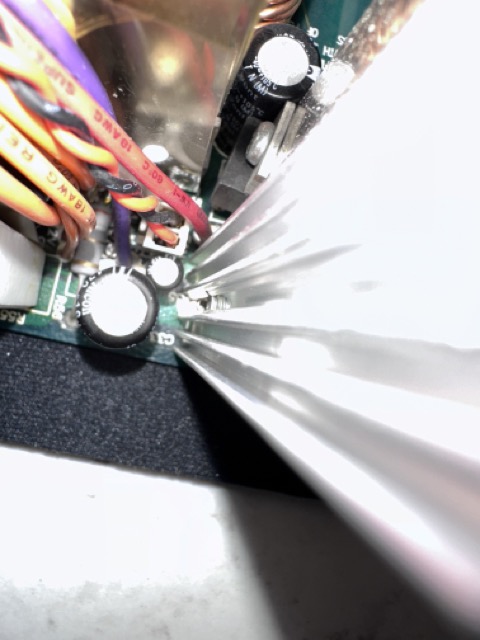

C8	See image
C9	See image
C10	See image
C11	See image
C12	See image
C13	See image
C14	See image

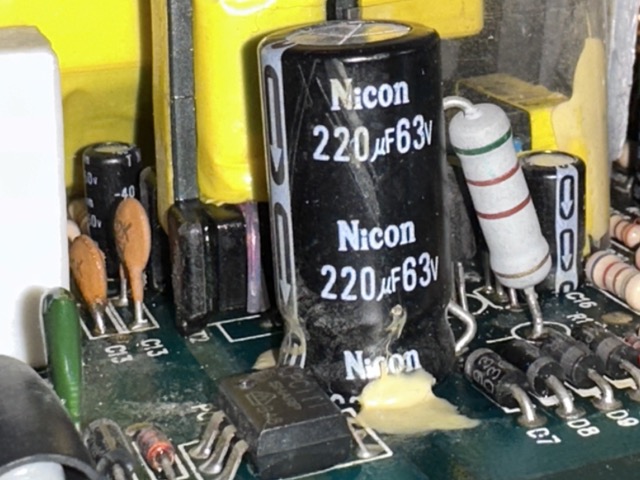

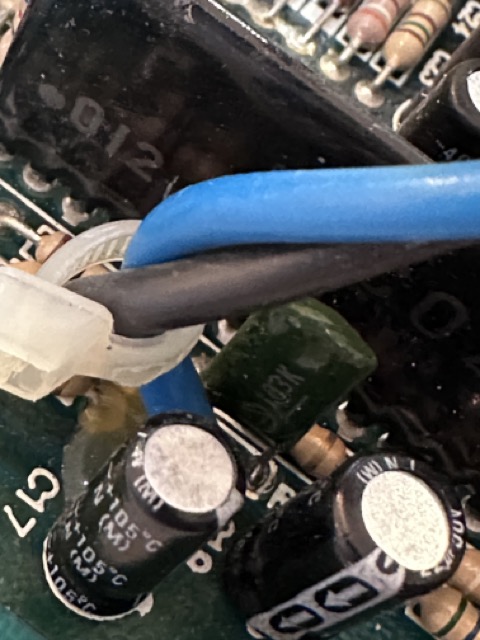

C15	220 µF 63V Nicon 25 x 13 mm

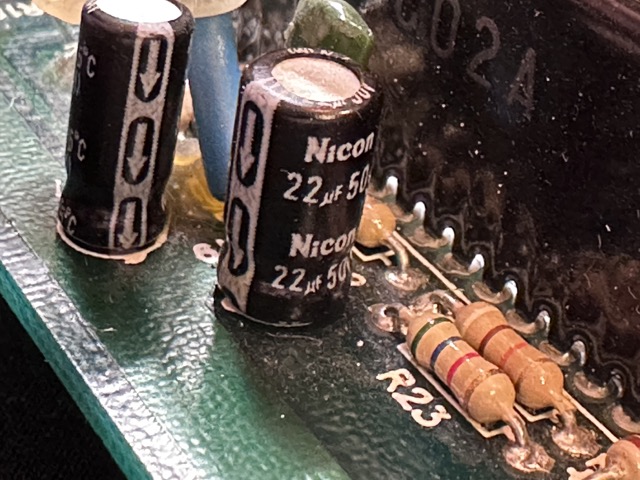

C16	22 µF 50V Nicon T N (M) 12 x 6 mm
C17	1 µF 50V Nicon T N (M) -40-105 12 x 5 mm
C18	103K
C19	22 µF 50V Nicon T N (M) -40-105 12 x 6 mm
C20	103K
C21	103K

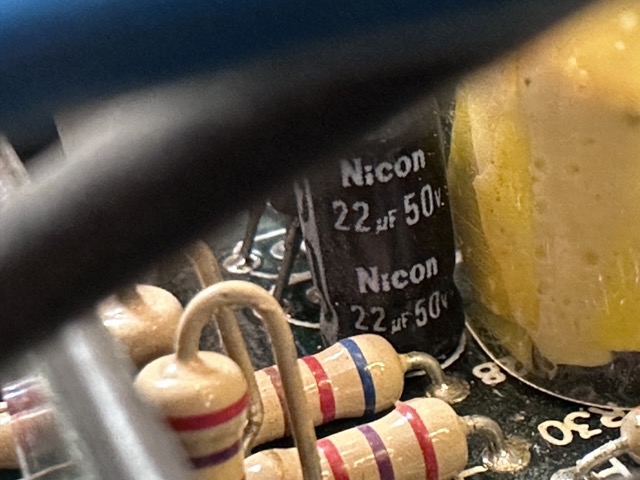

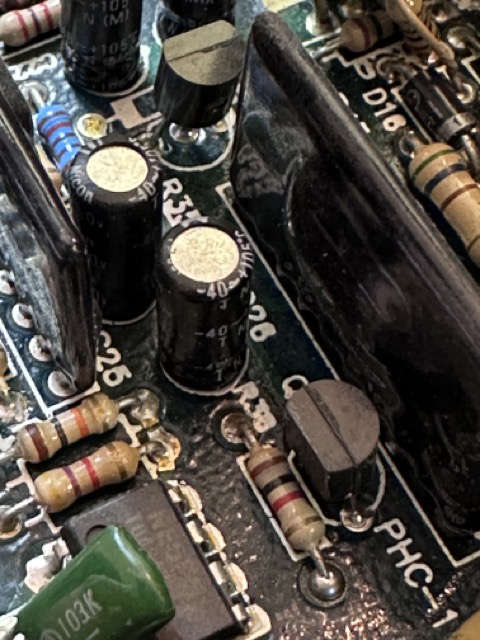

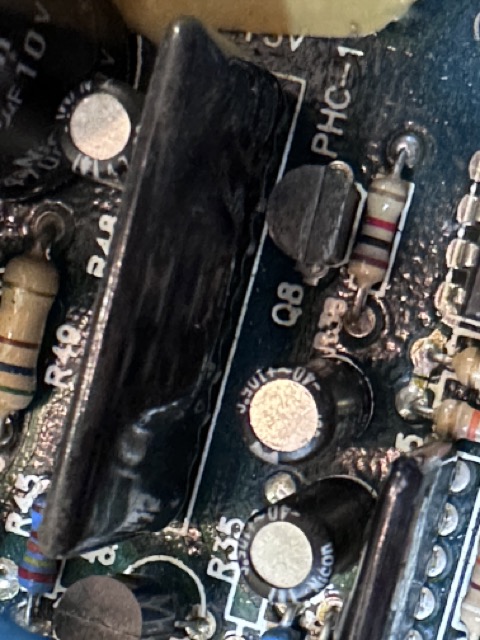

C22	10 µF 50V Nicon T N (M) -40-105 12 x 5 mm
C23	10 µF 50V Nicon T N (M) -40-105 12 x 5 mm
C24	1 µF (?) 50V Nicon T N (M) -40-105 12 x 5 mm
C25	1 µF 50V Nicon T N (M) -40-105 12 x 5 mm
C26	1 µF 50V Nicon T N (M) -40-105 12 x 5 mm

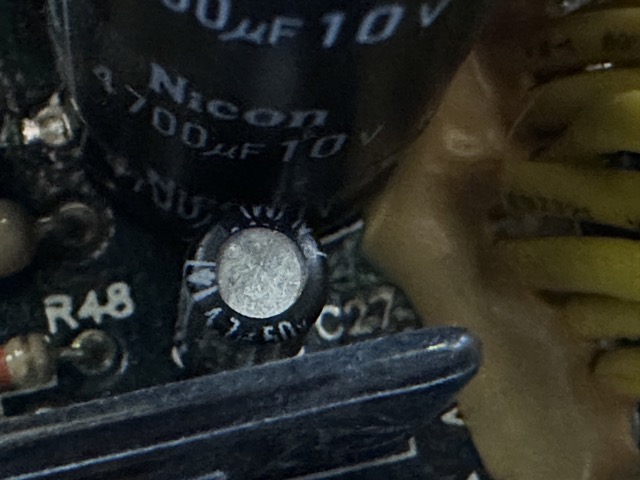

C27	4.7 µF 50V Nicon T N (M) -40-105 12 x 5 mm

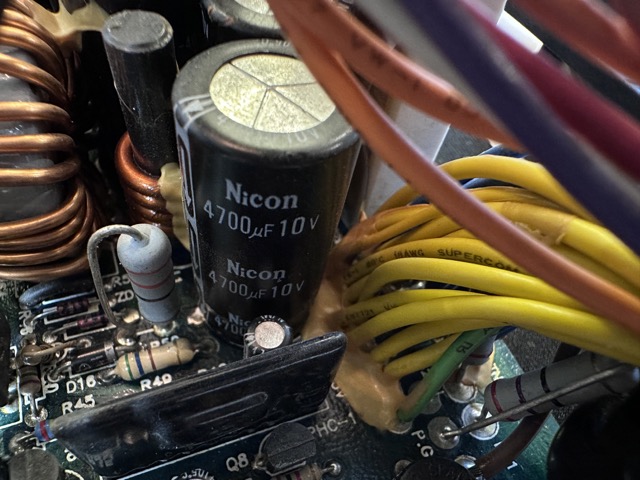

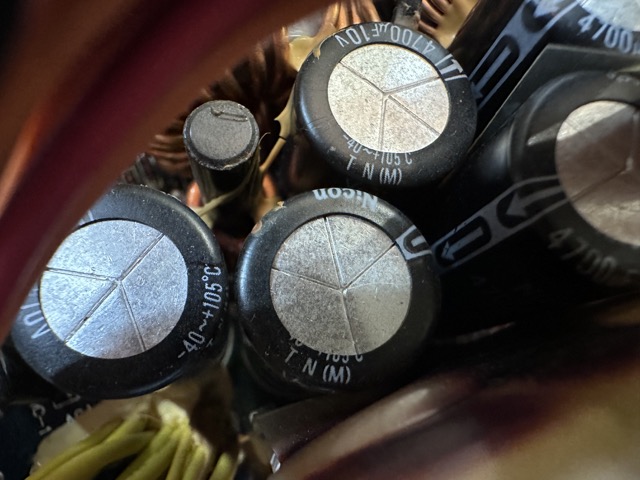

C28	4700 µF 10V Nicon T N (M) -40-105 33 x 16 mm
C29	4700 µF 10V Nicon T N (M) -40-105 33 x 16 mm
C30	4700 µF 10V Nicon T N (M) -40-105 33 x 16 mm

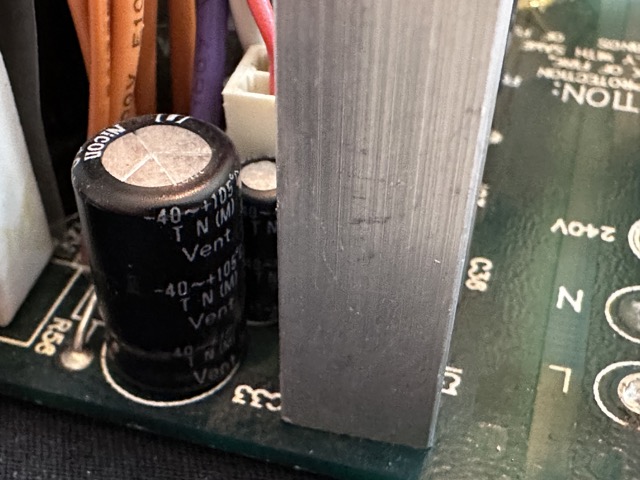

C31	4700 µF 16V Nicon T N (M) Vent -40-105 40 x 16 mm
C32	4700 µF 16V Nicon T N (M) Vent -40-105 40 x 16 mm

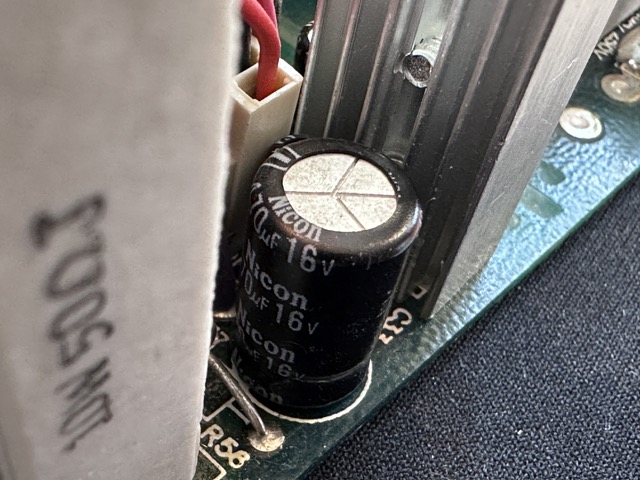

C33	470 µF 16V Nicon T N (M) Vent -40-105 16 x 10 mm
C34	47 µF 16V Nicon T N (M) -40-105 16 x 10 mm
C35	47 µF 16V Nicon T N (M) -40-105 16 x 10 mm
C36	47 µF 16V Nicon T N (M) -40-105 16 x 10 mm

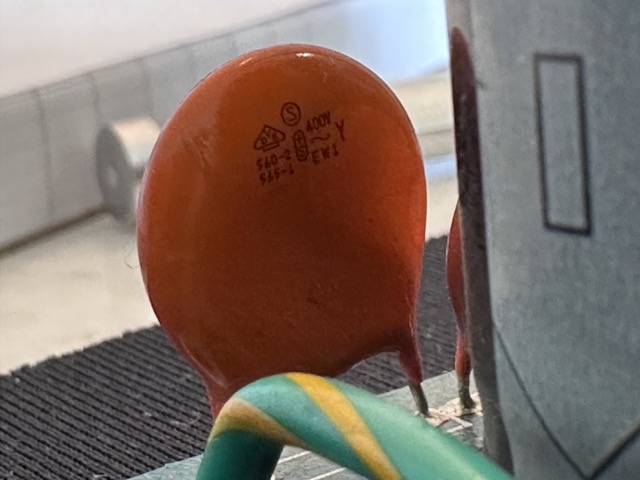

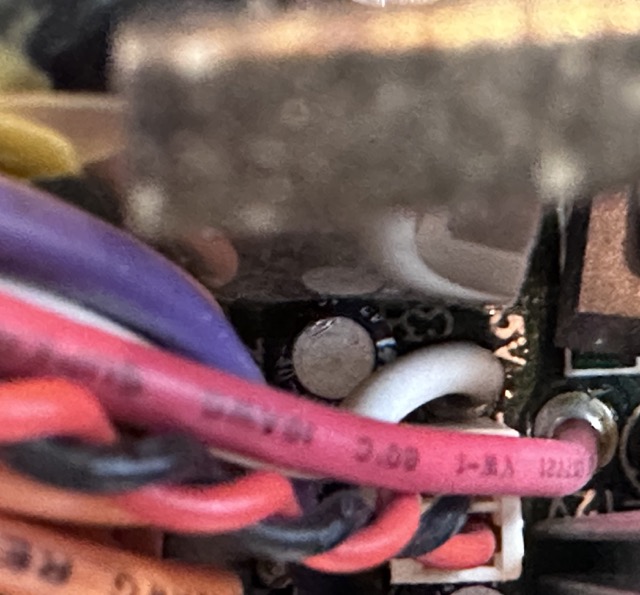

C37	See image
C38	See image
C39	See image
C40	See image

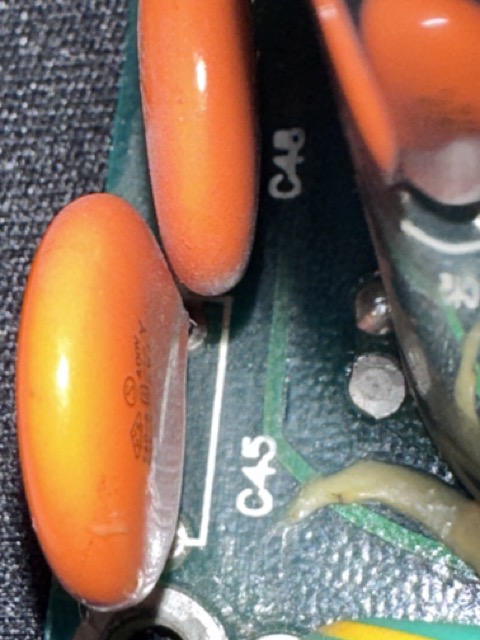

C43	See image
C45	See image
C46	See image
